I participated in BCACTF 2024, as a core member of the team InfoSecIITR. Our team secured 7th place globally. Here are the Writeups of some challenges I was personally able to solve during the competition.

Forensics/23-719-writeup

Challenge Description

We are given a pdf along with the following description:

That’s a nice unanimous supreme court decision you’ve made public, sure would be a shame if someone didn’t properly clean up remnants of a prior version of the document before publishing it.

Solution

The solution was pretty straight forward we just find for the initials of the flag i.e. bacactf and highlight some of the text

Image 1

So we select that text and paste it in a text editor and we reveal the flag :

Image 2

So our flag becomes ->

bcactf{rEAl_WOrLd_appLIc4t1ons_Of_cTf_ad04cc78601d5da8}

………………………………………………………..

Forensics/sheep-writeup

Challenge Description

We are given a .shp along with the following hint:

Figure out what type of file it is and see if there are tools you can use or modify.

Solution

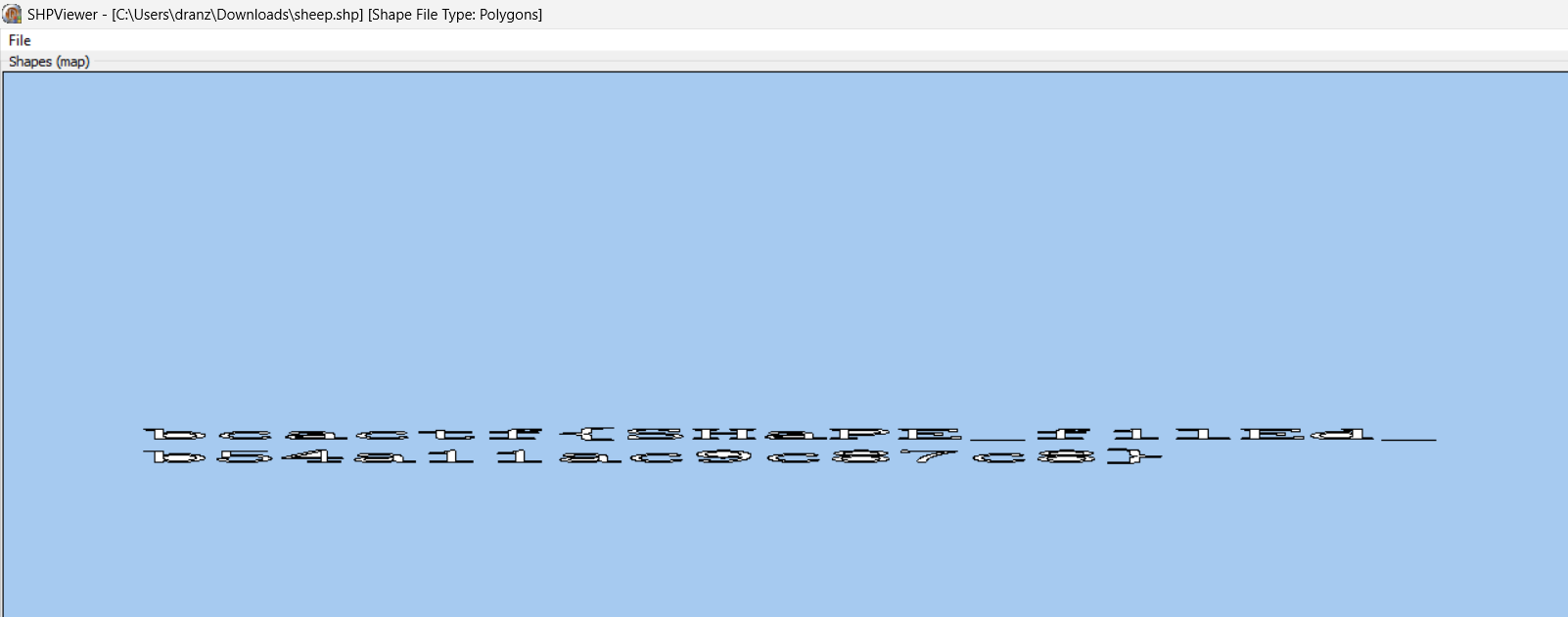

Upon some research we find out that .shp are ESRI shapefiles used in GIS softwares like Google Earth Pro but such softwares require 3 of such files as mandatory which are a .shp, .shx and a .dbf file which work complementorily to produce the geographical data but some more reserach yielded this software that can standalone process a .shp file (https://softradar.com/shp-viewer/). So we just load our sheep.shp in the software and thats it we get the flag :

Image 1

So our flag becomes ->

bcactf{SHaPE_f1lEd_b54a11ac9c87c8}

………………………………………………………….

Forensics/Manipulate Spreadsheet 2-writeup

Challenge Description

We are given an excel file for this challenge:

Solution

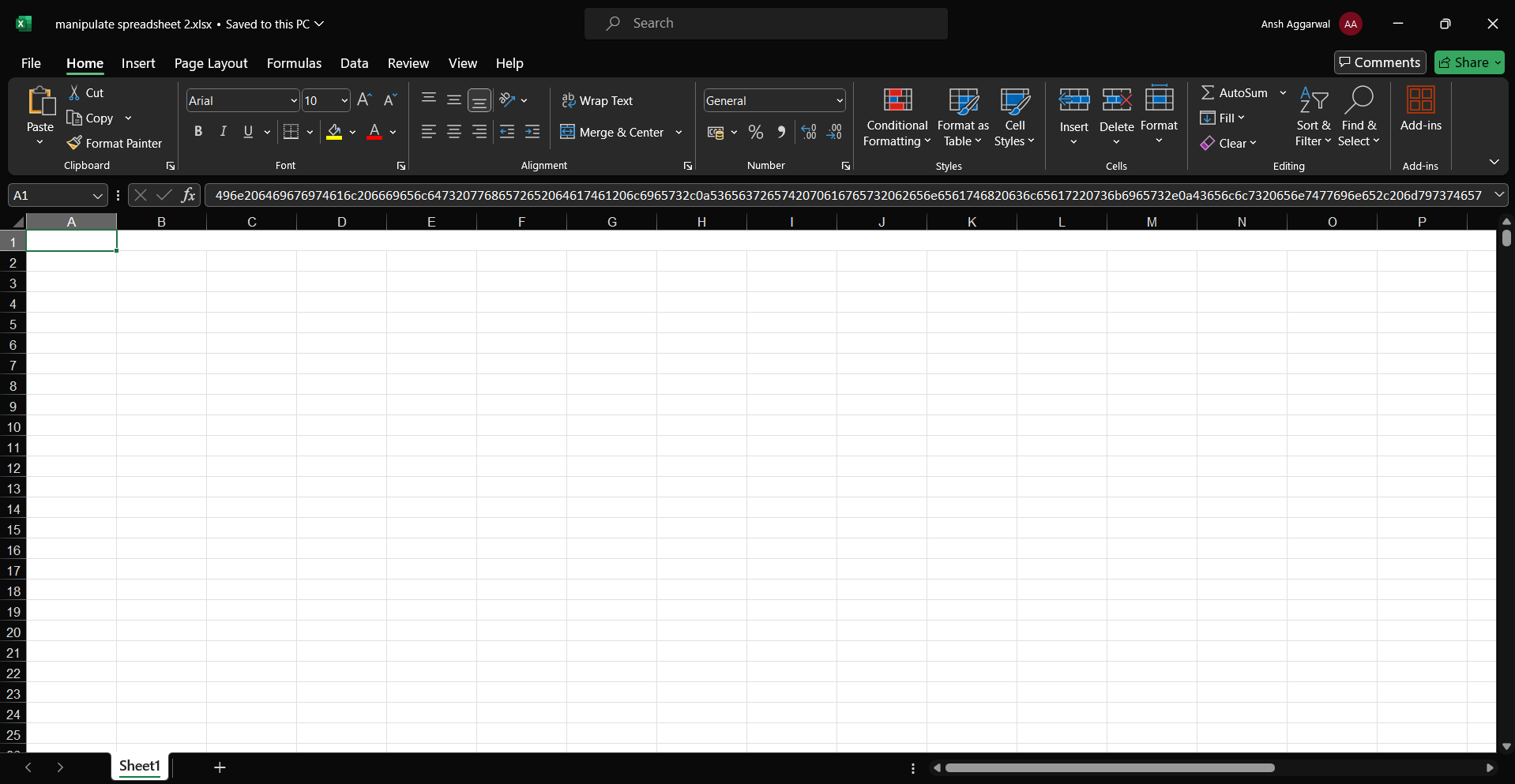

The first that we notice is this long string written in the A1 cell of the excel sheet.

Image 1

The hex decode of this string reveals the following hint:

In digital fields where data lies,
Secret pages beneath clear skies.
Cells entwine, mysteries feel,
Layers of secrets they reveal.

The layers part hint that there maybe a hidden sheet in this file and exactly that happens to be the case we unhide the sheet 2 of this excel file and there we find some bytes and index data along with another hint in the A1 cell of the sheet

Image 2

The hex decode of this hint reveals:

Lurking shadows, secrets play,
Stealthy whispers on display.
BITS aligned, LEAST in SIGht,
Gleams of secrets, veiled in light.

This reveals that we have to arrange the bytes in order of indices and then do LSB extract of the bytes so we do that and we get our flag as:

bcactf{600D_job_Using_900G13_SHe3t5}

…………………………………………………..

Forensics/Touch Tone Telephone-writeup

Challenge Description

We are given a .wav along with the following hints:

-DTMF is a really cool technology
-There also used to be A, B, C, and D menu selection keys
-How many keys are there in total? Is it a computer science-y number?
-For key to number, Start at top left, reading order. (Sorry, 0 is not 0, my bad)

Solution

Based on the hints the course of action gets pretty much cleared that we need to extract the dtmf tones of our wav file then perform a little substitution of keys before finally hex decoding the message. Now there are many online tools to detect the dtmf tones of a wav file but I used the CLI tool multimon-ng which gives us a result for the detected dtmf tones as

47656*6*6D3#315B656*6A6D606531B46D31B4676531434A424A54463147656*B16*686#653#19546768BA316A626*6*316062B831636531B3656A6DB364656431666DB331B2B5626*68B4B83162BABAB5B3626#6A6531B1B5B3B16DBA65BA3#1919466DB3316A6762B33131A13*316B65B431686#6465B731A1B7A6A23#19466DB3316A6762B33131A23*316B65B431686#6465B731A1B7ABA33#19466DB3316A6762B33131A33*316B65B431686#6465B731A1B7A66A3#19466DB3316A6762B33131AA3*316B65B431686#6465B731A1B7AAA73#19466DB3316A6762B33131A43*316B65B431686#6465B731A1B7A3633#19466DB3316A6762B33131A53*316B65B431686#6465B731A1B7A6663#19466DB3316A6762B33131A63*316B65B431686#6465B731A1B7AA653#19466DB3316A6762B33131AB3*316B65B431686#6465B731A1B7A5A83#19466DB3316A6762B33131A73*316B65B431686#6465B731A1B7A66A3#19466DB3316A6762B33131A83*316B65B431686#6465B731A1B7AAA73#19466DB3316A6762B331A2A13*316B65B431686#6465B731A1B7A2A83#19466DB3316A6762B331A2A23*316B65B431686#6465B731A1B7A6663#19466DB3316A6762B331A2A33*316B65B431686#6465B731A1B7A2643#19466DB3316A6762B331A2AA3*316B65B431686#6465B731A1B7ABA33#19466DB3316A6762B331A2A43*316B65B431686#6465B731A1B7A1623#19466DB3316A6762B331A2A53*316B65B431686#6465B731A1B7A4A53#19466DB3316A6762B331A2A63*316B65B431686#6465B731A1B7A5A83#19466DB3316A6762B331A2AB3*316B65B431686#6465B731A1B7A663#19466DB3316A6762B331A2A73*316B65B431686#6465B731A1B7A66A3#19466DB3316A6762B331A2A83*316B65B431686#6465B731A1B7A3653#19466DB3316A6762B331A3A13*316B65B431686#6465B731A1B7A6663#19466DB3316A6762B331A3A23*316B65B431686#6465B731A1B7A66A3#19466DB3316A6762B331A3A33*316B65B431686#6465B731A1B7A3A63#19466DB3316A6762B331A3AA3*316B65B431686#6465B731A1B7A3633#19466DB3316A6762B331A3A43*316B65B431686#6465B731A1B7A1A33#19466DB3316A6762B331A3A53*316B65B431686#6465B731A1B7A6663#19466DB3316A6762B331A3A63*316B65B431686#6465B731A1B7A1A23#19466DB3316A6762B331A3AB3*316B65B431686#6465B731A1B7A3A63#19466DB3316A6762B331A3A73*316B65B431686#6465B731A1B7ABA33#19466DB3316A6762B331A3A83*316B65B431686#6465B731A1B7A5AA3#19466DB3316A6762B331AAA13*316B65B431686#6465B731A1B7AAA83#19466DB3316A6762B331AAA23*316B65B431686#6465B731A1B7A1A43#191919516*6562BA6531676D6*6431BB67686*6531BB6531BA656#6431B86DB531B3626#646D60316B62B363626B6531B46762B431B86DB531BA676DB56*6431686#6465B731686#B46D31B46D316B65B431B4676531666*626B3#195B67656#31B86DB53BB3653166686#68BA6765643*3160626C6531BAB5B36531B46D31BBB362B131B4676531666*626B31686#31B4676531B1B36DB165B331666DB36062B43#19B7B16453655B45666#6DA43B4B653655547B7B5A7B443B36C6#B85567A2A3A7446D6*BA5B67A26DB9AB6A6#5544B86B48B76C4A48B4BBBAA1A5B64#A75A646C46B1545153B6564#556A5354B46D5AABB945556266AB4D4#48AA6#A155B456B5486*68A8436A5166B7454A586044485DA445AAB349425567584B56A8BBD4648

But due to the speed of the wav file some of the dtmf tones get overlapped in this result and doing some manual patching of this result we get the final dtmf tones as :

47656*6*6D3#315B656*6A6D606531B46D31B4676531434A424A54463147656*B16*686#653#19546768BA316A626*6*316062B831636531B3656A6DB364656431666DB331B2B5626*68B4B83162BABAB5B3626#6A6531B1B5B3B16DBA65BA3#1919466DB3316A6762B33131A13*316B65B431686#6465B731A1B7A6A23#19466DB3316A6762B33131A23*316B65B431686#6465B731A1B7ABA33#19466DB3316A6762B33131A33*316B65B431686#6465B731A1B7A66A3#19466DB3316A6762B33131AA3*316B65B431686#6465B731A1B7AAA73#19466DB3316A6762B33131A43*316B65B431686#6465B731A1B7A3633#19466DB3316A6762B33131A53*316B65B431686#6465B731A1B7A6663#19466DB3316A6762B33131A63*316B65B431686#6465B731A1B7AA653#19466DB3316A6762B33131AB3*316B65B431686#6465B731A1B7A5A83#19466DB3316A6762B33131A73*316B65B431686#6465B731A1B7A66A3#19466DB3316A6762B33131A83*316B65B431686#6465B731A1B7AAA73#19466DB3316A6762B331A2A13*316B65B431686#6465B731A1B7A2A83#19466DB3316A6762B331A2A23*316B65B431686#6465B731A1B7A6663#19466DB3316A6762B331A2A33*316B65B431686#6465B731A1B7A2643#19466DB3316A6762B331A2AA3*316B65B431686#6465B731A1B7ABA33#19466DB3316A6762B331A2A43*316B65B431686#6465B731A1B7A1623#19466DB3316A6762B331A2A53*316B65B431686#6465B731A1B7A4A53#19466DB3316A6762B331A2A63*316B65B431686#6465B731A1B7A5A83#19466DB3316A6762B331A2AB3*316B65B431686#6465B731A1B7A6663#19466DB3316A6762B331A2A73*316B65B431686#6465B731A1B7A66A3#19466DB3316A6762B331A2A83*316B65B431686#6465B731A1B7A3653#19466DB3316A6762B331A3A13*316B65B431686#6465B731A1B7A6663#19466DB3316A6762B331A3A23*316B65B431686#6465B731A1B7A66A3#19466DB3316A6762B331A3A33*316B65B431686#6465B731A1B7A3A63#19466DB3316A6762B331A3AA3*316B65B431686#6465B731A1B7A3633#19466DB3316A6762B331A3A43*316B65B431686#6465B731A1B7A1A33#19466DB3316A6762B331A3A53*316B65B431686#6465B731A1B7A6663#19466DB3316A6762B331A3A63*316B65B431686#6465B731A1B7A1A23#19466DB3316A6762B331A3AB3*316B65B431686#6465B731A1B7A3A63#19466DB3316A6762B331A3A73*316B65B431686#6465B731A1B7ABA33#19466DB3316A6762B331A3A83*316B65B431686#6465B731A1B7A5AA3#19466DB3316A6762B331AAA13*316B65B431686#6465B731A1B7AAA83#19466DB3316A6762B331AAA23*316B65B431686#6465B731A1B7A1A43#191919516*6562BA6531676D6*6431BB67686*6531BB6531BA656#6431B86DB531B3626#646D60316B62B363626B6531B46762B431B86DB531BA676DB56*6431686#6465B731686#B46D31B46D316B65B431B4676531666*626B3#195B67656#31B86DB53BB3653166686#68BA6765643*3160626C6531BAB5B36531B46D31BBB362B131B4676531666*626B31686#31B4676531B1B36DB165B331666DB36062B43#19B7B16453655B45666#6DA443B4B653655547B7B5A7B443B36C6#B85567A2A3A7446D6*BA5B67A26DB9AB6A6#5544B86B48B76C4A48B4BBBAA1A5B64#A75A646C46B1545153B6564#556A5354B46D5AABB945556266AB4D4#48AA6#A155B456B5486*68A8436A5166B7454A586044485DA445AAB349425567584B56A8BB4D4648

Then we do the keys substituition as replacing 123A456B789C*0#D by 0123456789ABCDEF and print the hex decoded value using python.

1
2
3
4
5
6
7
8
9
10
11
12
input_string = "xpdReWEfno4BtvReUHxu8tBrknyUh128DolsWh1oz7cnUDygIxkCItws05vN8SdkFpTPRvVNUcRTtoS7zEUaf7ONI3n0UtVuIli9BcPfxECYmDI_4E3rJAUhYGV9wOFI"

hex_indices = [
    0x61, 0x72, 0x6c, 0x38, 0x2b, 0x6f, 0x3e, 0x59, 0x6c, 0x38,
    0x19, 0x6f, 0x1d, 0x72, 0x0a, 0x45, 0x59, 0x6f, 0x6c, 0x2e,
    0x6f, 0x6c, 0x26, 0x2b, 0x02, 0x6f, 0x01, 0x26, 0x72, 0x53,
    0x39, 0x04
]

resultant_string = ''.join(input_string[index] for index in hex_indices)

print(resultant_string)

Then we get the following message:

Image 1

Now comes the part to reverse this code so we write another code to solve this task which extract the characters of the flag based on the given indices of the garbage given in the end.

1
2
3
4
5
6
7
8
9
10
11
12
mapping = {
    '1': '0', '2': '1', '3': '2', 'A': '3', '4': '4', '5': '5', '6': '6', 'B': '7',
    '7': '8', '8': '9', '9': 'A', 'C': 'B', '*': 'C', '0': 'D', '#': 'E', 'D': 'F'
}

encoded_str = ("47656*6*6D3#315B656*6A6D606531B46D31B4676531434A424A54463147656*B16*686#653#19546768BA316A626*6*316062B831636531B3656A6DB364656431666DB331B2B5626*68B4B83162BABAB5B3626#6A6531B1B5B3B16DBA65BA3#1919466DB3316A6762B33131A13*316B65B431686#6465B731A1B7A6A23#19466DB3316A6762B33131A23*316B65B431686#6465B731A1B7ABA33#19466DB3316A6762B33131A33*316B65B431686#6465B731A1B7A66A3#19466DB3316A6762B33131AA3*316B65B431686#6465B731A1B7AAA73#19466DB3316A6762B33131A43*316B65B431686#6465B731A1B7A3633#19466DB3316A6762B33131A53*316B65B431686#6465B731A1B7A6663#19466DB3316A6762B33131A63*316B65B431686#6465B731A1B7AA653#19466DB3316A6762B33131AB3*316B65B431686#6465B731A1B7A5A83#19466DB3316A6762B33131A73*316B65B431686#6465B731A1B7A66A3#19466DB3316A6762B33131A83*316B65B431686#6465B731A1B7AAA73#19466DB3316A6762B331A2A13*316B65B431686#6465B731A1B7A2A83#19466DB3316A6762B331A2A23*316B65B431686#6465B731A1B7A6663#19466DB3316A6762B331A2A33*316B65B431686#6465B731A1B7A2643#19466DB3316A6762B331A2AA3*316B65B431686#6465B731A1B7ABA33#19466DB3316A6762B331A2A43*316B65B431686#6465B731A1B7A1623#19466DB3316A6762B331A2A53*316B65B431686#6465B731A1B7A4A53#19466DB3316A6762B331A2A63*316B65B431686#6465B731A1B7A5A83#19466DB3316A6762B331A2AB3*316B65B431686#6465B731A1B7A6663#19466DB3316A6762B331A2A73*316B65B431686#6465B731A1B7A66A3#19466DB3316A6762B331A2A83*316B65B431686#6465B731A1B7A3653#19466DB3316A6762B331A3A13*316B65B431686#6465B731A1B7A6663#19466DB3316A6762B331A3A23*316B65B431686#6465B731A1B7A66A3#19466DB3316A6762B331A3A33*316B65B431686#6465B731A1B7A3A63#19466DB3316A6762B331A3AA3*316B65B431686#6465B731A1B7A3633#19466DB3316A6762B331A3A43*316B65B431686#6465B731A1B7A1A33#19466DB3316A6762B331A3A53*316B65B431686#6465B731A1B7A6663#19466DB3316A6762B331A3A63*316B65B431686#6465B731A1B7A1A23#19466DB3316A6762B331A3AB3*316B65B431686#6465B731A1B7A3A63#19466DB3316A6762B331A3A73*316B65B431686#6465B731A1B7ABA33#19466DB3316A6762B331A3A83*316B65B431686#6465B731A1B7A5AA3#19466DB3316A6762B331AAA13*316B65B431686#6465B731A1B7AAA83#19466DB3316A6762B331AAA23*316B65B431686#6465B731A1B7A1A43#191919516*6562BA6531676D6*6431BB67686*6531BB6531BA656#6431B86DB531B3626#646D60316B62B363626B6531B46762B431B86DB531BA676DB56*6431686#6465B731686#B46D31B46D316B65B431B4676531666*626B3#195B67656#31B86DB53BB3653166686#68BA6765643*3160626C6531BAB5B36531B46D31BBB362B131B4676531666*626B31686#31B4676531B1B36DB165B331666DB36062B43#19B7B16453655B45666#6DA443B4B653655547B7B5A7B443B36C6#B85567A2A3A7446D6*BA5B67A26DB9AB6A6#5544B86B48B76C4A48B4BBBAA1A5B64#A75A646C46B1545153B6564#556A5354B46D5AABB945556266AB4D4#48AA6#A155B456B5486*68A8436A5166B7454A586044485DA445AAB349425567584B56A8BB4D4648")

decoded_str = ''.join(mapping.get(char, char) for char in encoded_str)

bytes_obj = bytes.fromhex(decoded_str)
result_string = bytes_obj.decode("utf-8")
print(result_string)

And that reveals us our flag:

bcactf{l3m0n_d3m0n_134v3_my_m1nd_p13a5e}
